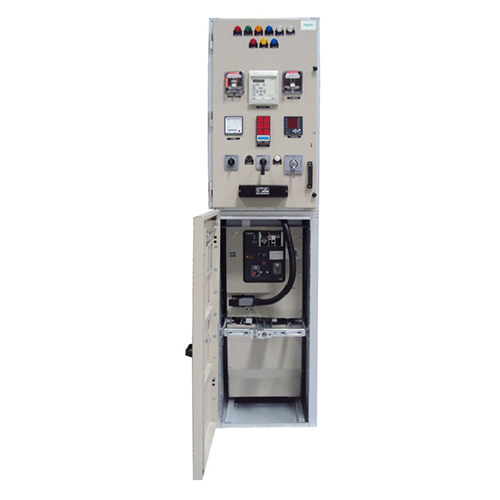

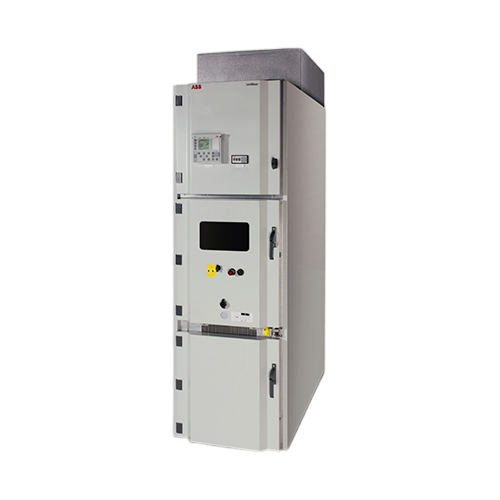

Our 11kV VCB Panels are engineered to provide safe, reliable, and efficient medium-voltage power distribution and protection. Designed to meet IEC and IS standards, these Vacuum Circuit Breaker panels are ideal for indoor installations in utilities, commercial complexes, industrial plants, and substations.
Key Features:
Rated Voltage: 11kV
Current Rating: Up to 1250A / 2000A
Breaking Capacity: 25kA / 31.5kA for 3 seconds
Insulation Medium: Air-insulated switchgear with vacuum interrupters
Type: Metal-clad, draw-out type with compartmentalized construction
Protection Relays: Fully integrated with numerical protection relays for overcurrent, earth fault, and short circuit protection
Safety: Equipped with mechanical and electrical interlocks to ensure maximum operator safety
Remote Operation: SCADA/DCS compatibility for remote monitoring and control
Compliance: Designed and tested as per IEC 62271-100 / IS 13118
Applications:
Power Transmission and Distribution
Industrial Plants (Steel, Cement, Petrochemicals)
Commercial Buildings and Infrastructure
Renewable Energy Projects
Utility Substations
Why Choose Our Panels?
Robust construction with long service life
Low maintenance due to vacuum interruption technology
Customizable configurations as per client requirements
