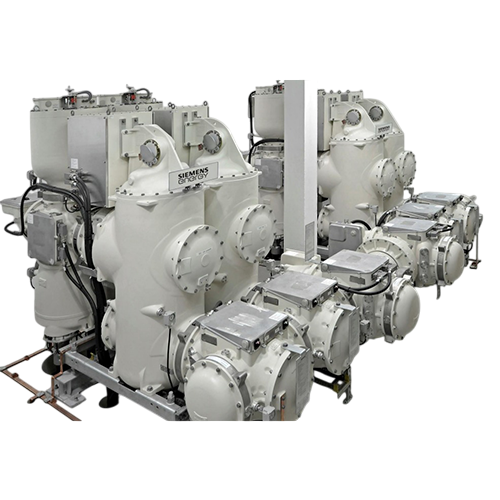

A 145kV Gas Insulated Switchgear (GIS) Substation is a high-voltage power distribution solution engineered for maximum reliability, safety, and space efficiency. Designed with advanced SF₆ gas insulation, this substation is ideal for critical infrastructure, high-density urban areas, industrial plants, and utility transmission networks where performance and footprint are key considerations.
Key Features:
Compact Footprint: The GIS design allows for significant space savings—up to 70% smaller than traditional Air Insulated Substations—making it ideal for densely populated or environmentally sensitive areas.
High Reliability: Fully enclosed and factory-tested modules ensure consistent performance under harsh environmental conditions with minimal maintenance.
Enhanced Safety: Segregated compartments, arc-resistant enclosures, and robust interlocking systems provide the highest levels of operational safety.
Modular and Scalable: Flexible design allows for easy expansion and integration with SCADA and protection systems.
Environmental Performance: Designed with leak-proof gas compartments and advanced monitoring systems to minimize SF₆ emissions and environmental impact.
The 145kV GIS Substation is a critical component in modern power networks, offering long service life, low lifecycle costs, and superior operational reliability. It is widely used in transmission and sub-transmission systems where space, performance, and safety are non-negotiable.
